PIPE ท่อเคลือบ ABS

eco.flex

The standardized eco.flex pipes have a diameter of 28 mm. The pipe thickness for light and medium duty application is 0.7 mm and 1.0 mm. For heavy duty application, pipes with thickness of 2.0 mm are available. The eco.flex pipes consist of plastic coated, aluminum and stainless steel pipes.

Plastic Coated Pipe

The eco.flex plastic coated pipes are made of SPCC-B1 steel pipe coated with acrylonitrile butadiene styrene (ABS). The ABS coating provides the pipe with a nice finish as well as optimizes the strength of the pipe and the clamping force. ABS coating also prevents pipes from rusting and it provides excellent wear as well as impact resistance. The pipes are made available in different colours.

ABS Coated

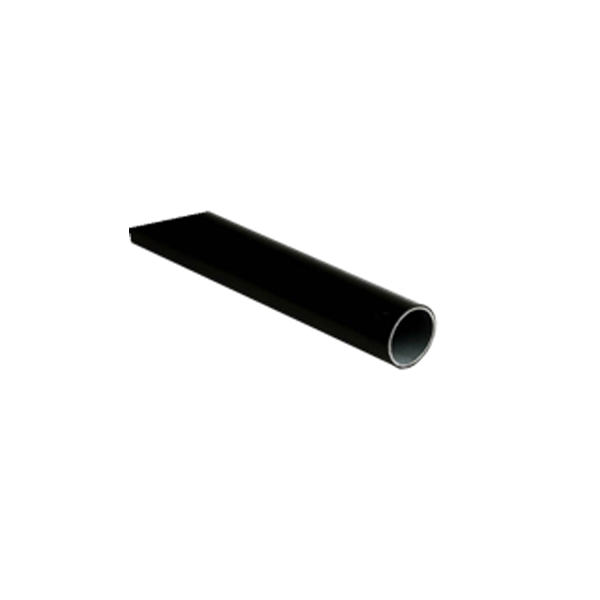

ESD Coated

Key features of ABS coated pipes:

  • Cost effective
  • Durable and flexible
  • Rust inhibitor applied to inner surface for extended lifetime cycle
  • Adhesive coating between ABS and steel pipe to improve peeling
  • Wide range of colour
  • Available in ESD coating (black)

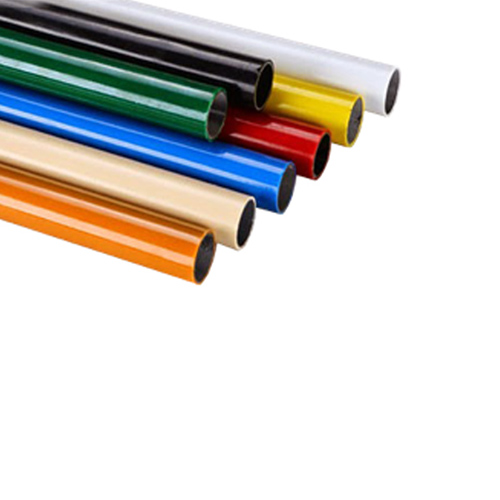

Colour chart of ABS pipes

IV

NB

SB

RE

BK

YE

GE

WH

LG

Wall thickness

Wall thickness0.7 mm0.8 mm1.0 mm1.2 mm2.0 mm
Stainless Steel Pipe
ABS Coated Pipe

Wall thickness

Type of PipesStainless Steel PipeABS Coated Pipe

Standard Pipe


Standard Pipe

Slide Pipe


Slide Pipe

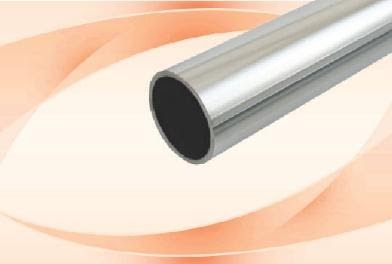

Stainless Steel Pipe

The eco.flex stainless steel (SUS) pipes are made of high grade austenitic stainless steel, which is nonmagnetic and strong corrosion resistance. Scratches on the surface will NOT lead to corrosion.

Stainless Steel

Key features of SUS pipes:

  • Higher strength to weight ratio than that of coated pipe
  • Superior resistance to oil and chemicals
  • No burning during cutting
  • Environmental friendly
  • Electrostatic discharge, electrically and thermally conductive
  • Best appearance over long term

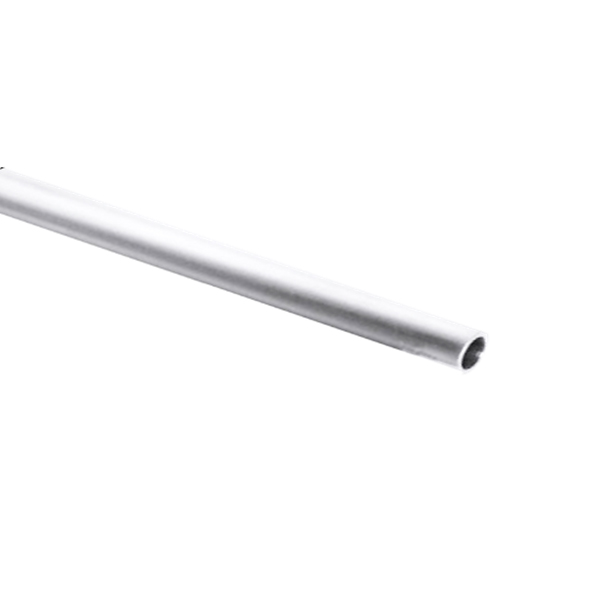

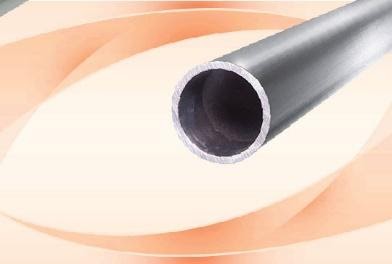

Aluminum Pipe

The eco.flex aluminum pipes are made from aluminum extrusion materials with anodized treatment to enhance corrosion resistance.

Aluminum Pipe

Key features of aluminum pipes:

  • Light weight. Density of aluminum is about 1/3 of steel density.
  • Superior resistance to oil, chemicals and weather
  • No burning during cutting
  • Environmental friendly
  • High reusability
  • Electrostatic discharge, electrically and thermally conductive
  • Best appearance over long term

Coding system

CSP 2807 X

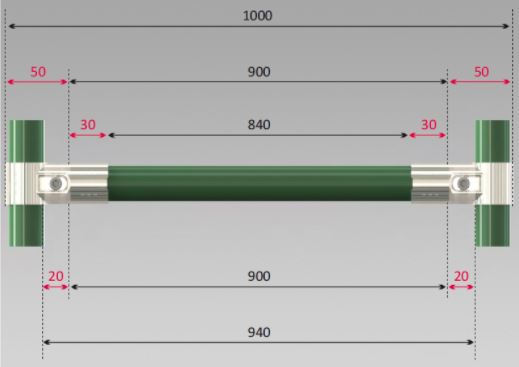

Coding system

Unit of length : mm

Pipe loading capacity

Pipe loading capacity

MAXIMUM LOAD LIMITS

PipeOverall Length (mm)
Permanent Deformation (mm)

Total Bending (mm)

Load (kg)
CSP-28071000013
CSP-28071000524
CSP-280710001032
CSP-280710001540
CSP-28101000014
CSP-28101000525
CSP-281010001032
CSP-281010001538
CSP-28201000012
CSP-28201000518
CSP-282010001025
CSP-282010001530
SSP-28071000011
SSP-28071000517
SSP-280710001024
SSP-280710001530
SSP-28101000012
SSP-28101000518
SSP-281010001024
SSP-2810

10001528

PIPE

Product type  : Pipe Joint System
